Portable Bag Closing Machines.
Revo® Bag Closer Sewing Machine -
Revo® DA is a single-thread chain-stitch portable filled bags closing sewing machine. This robust machine stands up to the most demanding sewing jobs on all types of paper, textile and poly bags made from HDPE/PP, etc. It is simple to operate, even for inexperienced users. The reinforced feed mechanism consisting of wider presser foot and feed dog with a bigger throat plate than conventional single thread chain-stitch bag closing machines helps achieve smoother, even and better looking plain and folded top closures.
Revo® bag closing machine housing is cast and machined to close tolerance and the parts undergo suitable heat treatment processes making them wear resistant, thus reducing downtime and repair costs. This machine is dependable even under the most adverse operating conditions in an agricultural or industrial environment.
Revo® Bag Closer Sewing Machine

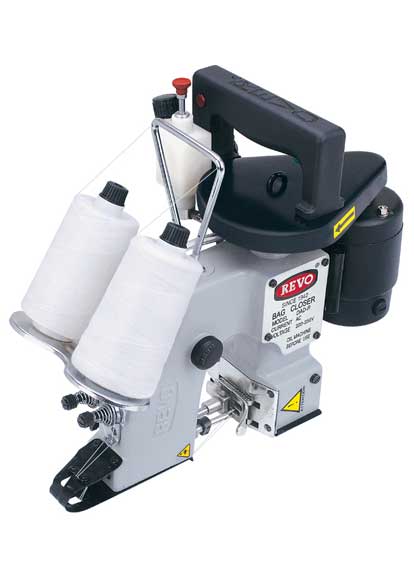

The DAD is a twin needle, double-thread, parallel chain-stitch, portable bag closing sewing machine. Its strong construction and design offers long-life reliable performance requiring minimum maintenance. This machine also features reinforced feed mechanism consisting of wider presser foot and feed dog with a bigger throat plate than conventional double chain-stitch bag closing machines for smoother, even and better looking plain and folded top closures. Revo® double thread bag-closing machine is ideal for bag closing applications requiring a two thread, safer closure. This machine is more versatile but just as dependable as a stationary bag closer. For the geo-textile industry, this machine offers a durable and tight stitch to meet required specifications. With its positive feeding of the material and durable construction, this machine is tougher, faster and packed with more power for performance and reliability. This machine is designed for speed and handling convenience to achieve as a result, quality bag closures at high production rate.
Revo® Bag Closer Sewing Machine

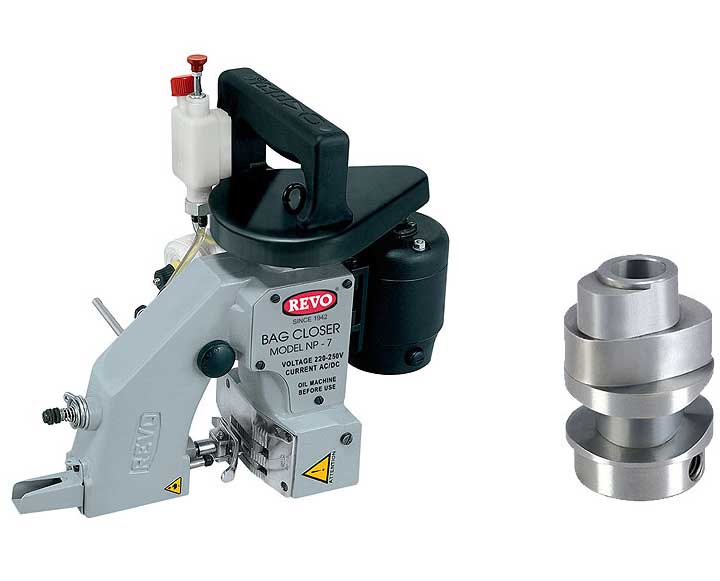

Single Needle, Single Thread NP-7A
Economical Revo® NP-7A Portable bag closer with steel cam is designed for continuous use.
The economical high-speed Revo® NP-7A Portable Bag Closer with steel cam provides a long, minimum maintenance service life. Engineered for continuous operation, the single thread chain stitch bag closer has a top speed of 1,600 rpm.
The Revo® NP-7A closes bags of agricultural products, animal feeds, fertilizer, flour, chemicals and other pelleted and powder materials. The versatile closer also sews on horizontal surfaces and can be used to join two fabrics.
Revo® NP-7A closes virtually every type of bag, including Kraft paper, cotton, Hessian, jute, PP/PE woven cloth as well as other bag materials.
The portable closer is equipped with a safety plastic handle for insulation and features an oil pump lubrication system and automatic thread cutting. Oil lines direct lubricant to main moving elements.
Options available with the portable bag closer include double thread chain stitch, presser foot lifter, shoulder belt, thread cone cover, tape binding attachment and spring balancer with hanger.

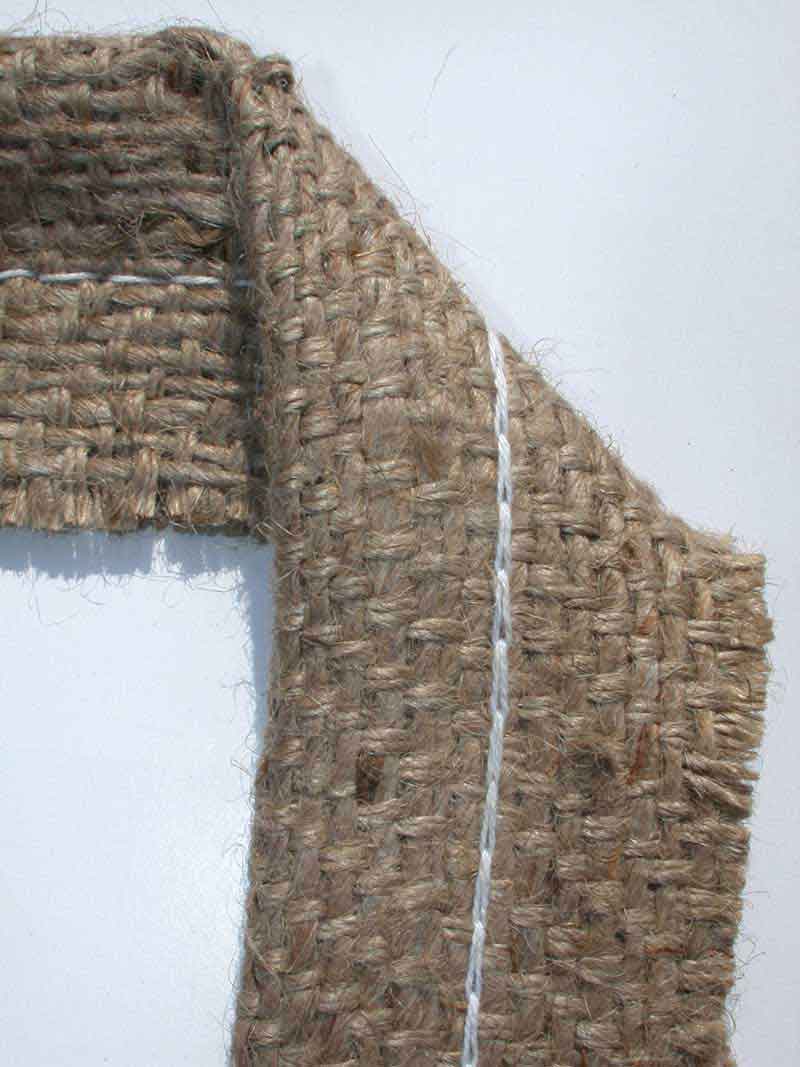

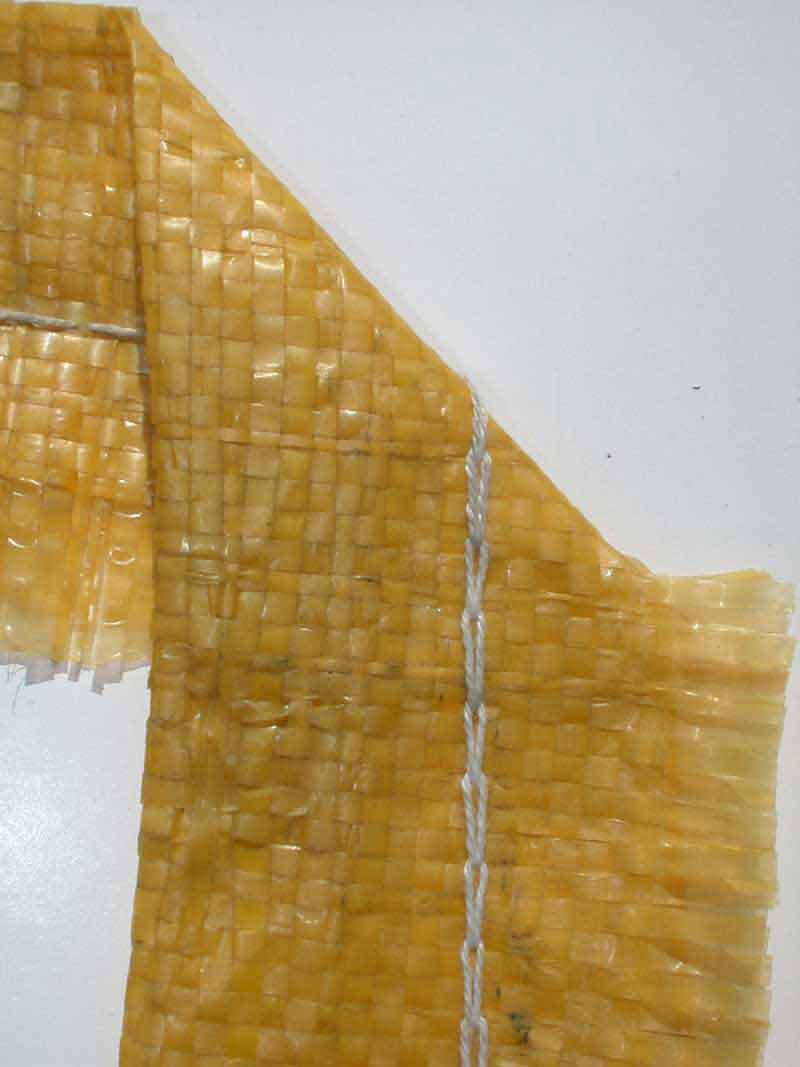

STICH SAMPLE SAME AS DA R

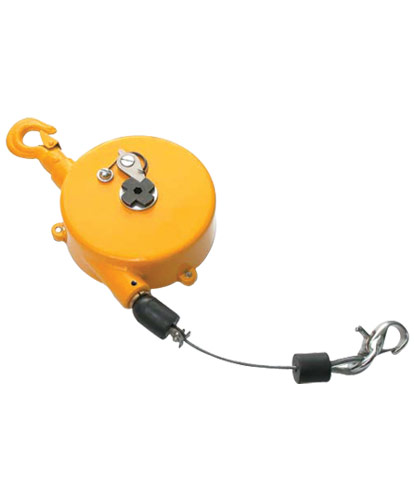

Suspension for portable Bag Closing Machines.
Revo® Portable Bag Closing Machines (Models DA, DAD, DA2T) can be easily and economically used with the Revo Suspension Unit without loss of portable features. It is the best solution for minimizing operator fatigue as it keeps the machine safely suspended above the working area. Ideal for occasional bagging, the suspension unit holds the machine up until required for use by the operator. The machine is then pulled down to the bag top level for use. When released, the durable spring-loaded suspension unit retracts the machine back to its home position. The Suspension Unit also prevents accidental damage of the machine and can be removed with ease for use elsewhere.
Conveyor Base Bagclosing Machines.
Revo® BELT Conveyor Base
Sewing System
A professional bag closing conveyor system built around the Revo® RC Series sewing heads.
The system features a conveyor system with speed of 20 meters per minute (1000 bags per hour).
The sewing head is controlled using a powerful electromagnetic clutch brake combination to ensure prompt run stop response from the press or release of the electric foot pedal.
The screw lead inside the pillar is fully enclosed from dust. Rotating the wheel requires minimum effort to adjust the height of the sewing head from 250mm to 1000mm from the conveyor belt. Pillar with optional drive motor is also available to control sewing head height using an up/down electric switch.
Low speed electric motor (940rpm, 3 phase) for operating the conveyor belt produces enormous torque to carry several number of filled bags placed on the conveyor at the same time with ease.
Revo® BELT conveyor system is also available with specifications given by the customer and can also be used with other conveyor sewing heads.

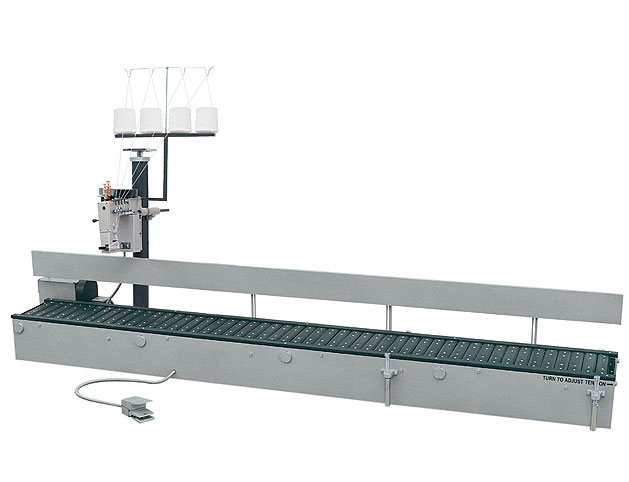

Revo® SLAT Conveyor Base
Sewing System
Revo® presents a rigged bag closing slat conveyor system built to provide reliable performance for years. The system features a slat conveyor with high production speed (adjustable) of 20 meters per minute (1000 bags per hour).
The counter weight inside the pillar ensures minimum stress on operator when using the wheel to adjust height of the sewing head from 200mm up to 1000mm. Low speed electric motor (940rpm, 3 phase) for operating the slat conveyor produces enough pulling power to carry severl number of filled bags placed on conveyor at the same time with minimum effort. Low ratio gearbox consisting of accurately machined and hardened gears, is immersed in high grade gear oil for minimum operation noise and smooth running.
Revo® SLAT Conveyor system is also available with specifications as given by the customer.

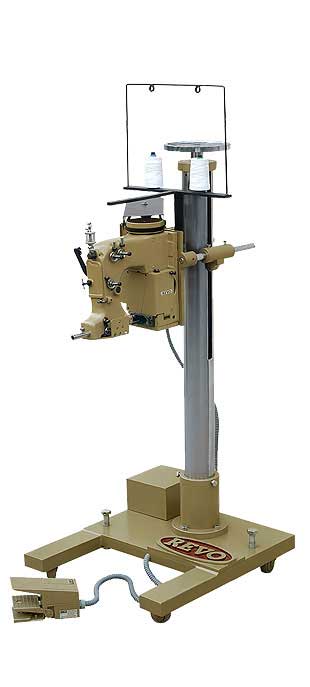

Pedestal Bag Closing Machines
Revo® Pedestral With Sewing Heads PR-4 |
| |||||
Conveyor Bagclosing Machines Tops.

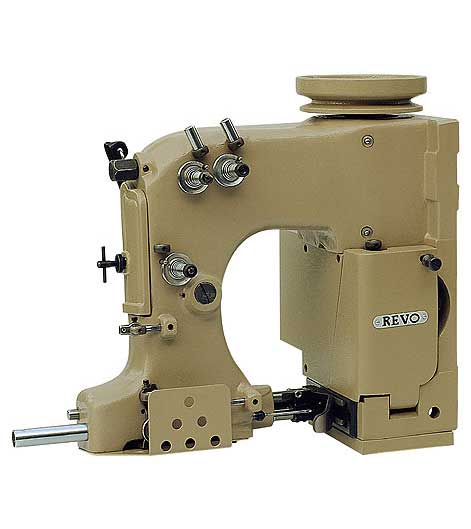

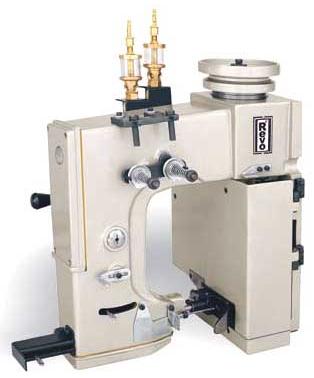

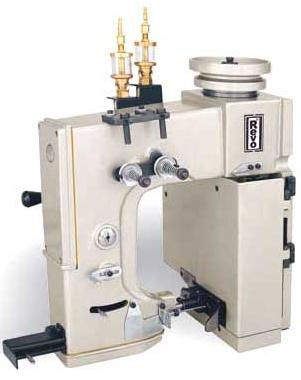

Revo® Sewing Heads For Conveyor Systems RC-8D
RC-8D - Twin needle, four thread, parallel double chain-stitch sewing head
The RC-8 sewing head is a rugged, simple to operate and efficient bag closing machine for conveyor systems. Simple mechanism for adjusting the stitch length from 5 mm to 9 mm makes the RC-8 ideal for stitching filled bags of all kinds of HDPE, PP, Jute, Hessian and various types of kraft-wall paper bags with synthetics or cotton thread.
The moving parts inside the machine are sealed against dirt and dust particles to ensure less maintenance is required than conventional conveyor bag closing sewing heads. It is used for closing mouths of bags filled with fertilizers, sugar, rice, flour, cattle feed etc. The mechanical cutter is available as standard in both the RC-8 models which helps severs the thread chain with ease after the bag has been securely stitched.
The RC-8 sewing head is available with a wide choice of slat or belt conveyor systems in various lengths. Conveyors can also be custom manufactured to different specified lengths. The machine also has provision of a variable speed pulley allows synchronization with existing conveyor systems
Revo® Sewing Heads For Conveyor Systems RC-8S
RC-8S - Single needle, two thread, single chain-stitch sewing head | |
Order Now |
Revo® RC-4S-Single Needle, Two Thread, Single Double-Chain Stitch Sewing Head RC-4S
Revo® RC-4 Series are suited perfect for use with conveyor systems handling heavy workload. The machines are capable of sewing on materials with thickness up to 15mm, making them ideal for use on heavy and thick materials. Revo® RC-4S Series can stitch on all types of bag material such as Jute, Woven HDPE, PP and kraft-wall paper bags. Durable construction of Revo® RC-4S Series offers reliable performance for years. The oil reservoir provides continuous lubrication to the moving parts inside the machine, ensuring minimum downtime. Sharp mechanical cutters are standard in the Revo® RC-4S Series to cut the thread chain after the bag has been securely stitched. | |

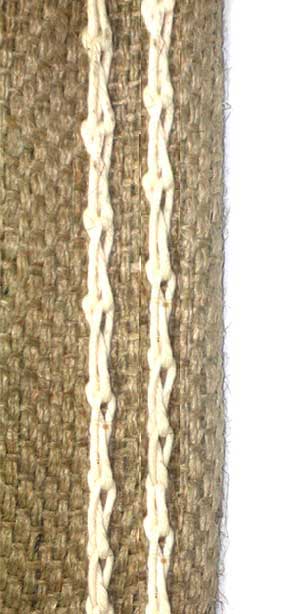

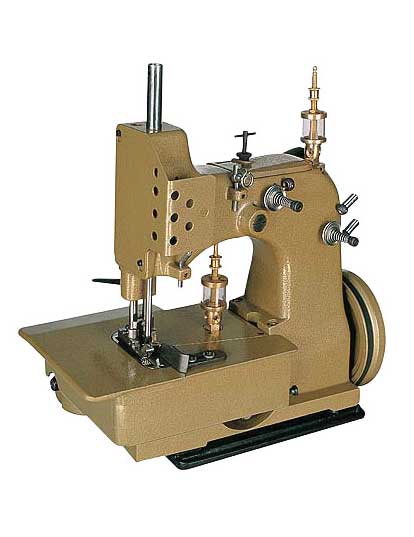

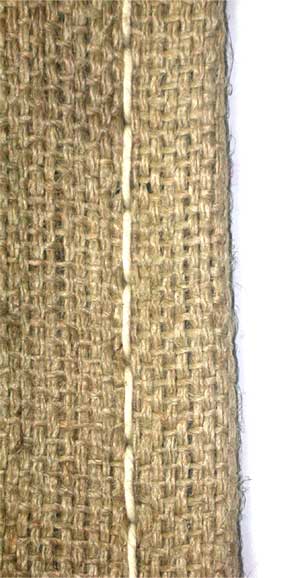

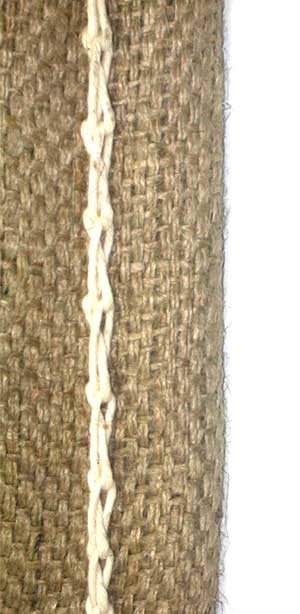

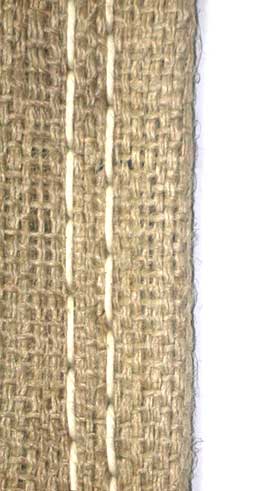

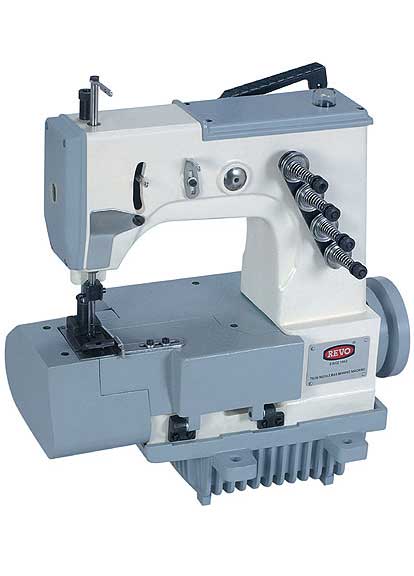

The R-19 Series machines are ideal for hemming openings of medium to heavy weight Jute or PP/PE woven cloth bags for manufacturing FIBC bulk bags. These are special Heavy Duty Machines are capable of sewing on extra thick material with thickness up to 15mm.

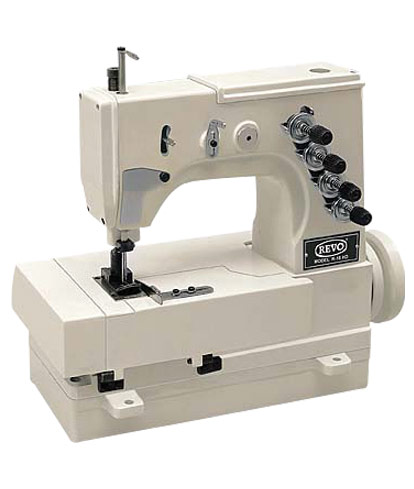

Revo® Bag Making Sewing Machine

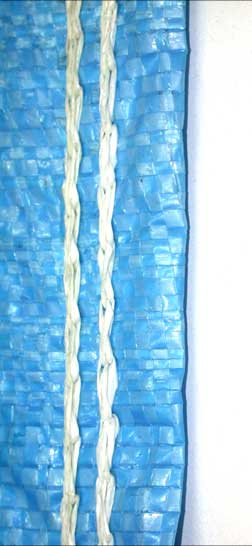

Twin Needle, Four Thread R-18HD

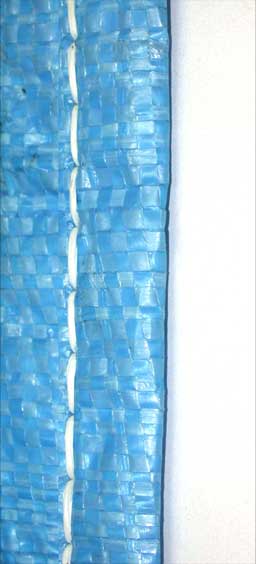

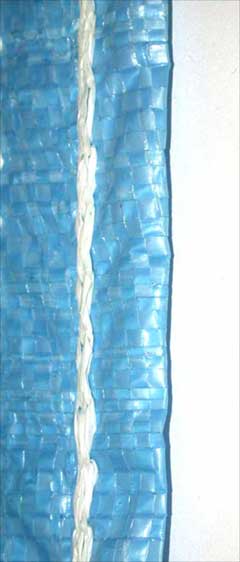

Single Needle, Two Thread R-18HS
Revo® R-18 Series machines are ideal for seaming and hemming light to heavy weight material such as a jute or PP/PE woven cloth bag. These machines are designed for manufacturing HDPE/PE woven sacks and jumbo bags. The completely automatic and totally enclosed lubrication system in the R-18 machines operates using a force-fed gear pump and a pressure regulating valve. The oil lines from the pump direct the lubricant to the main moving parts and on return, the oil is efficiently recycled and pumped back into the system. Simple working of the R-18 Series allows the operator to achieve faster and better production with less downtime. | |
Following are the features and benefits of Revo® bag making sewing machine:
|

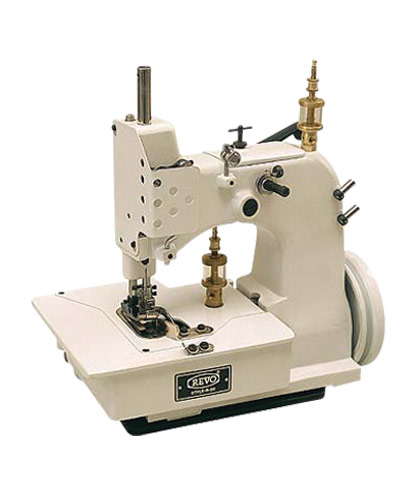

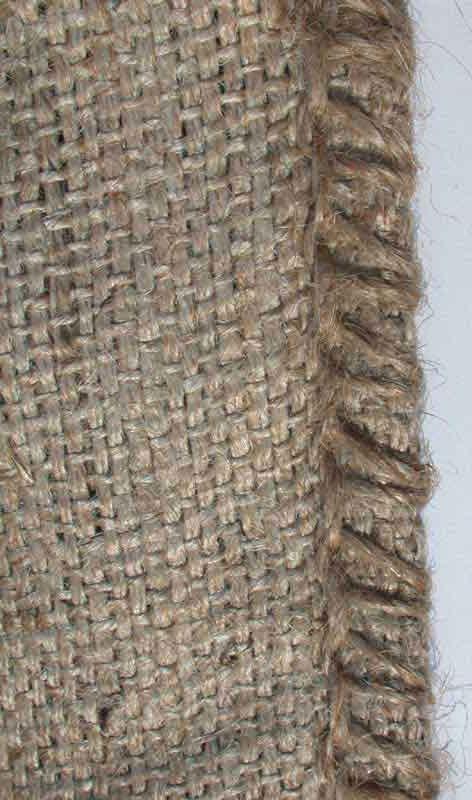

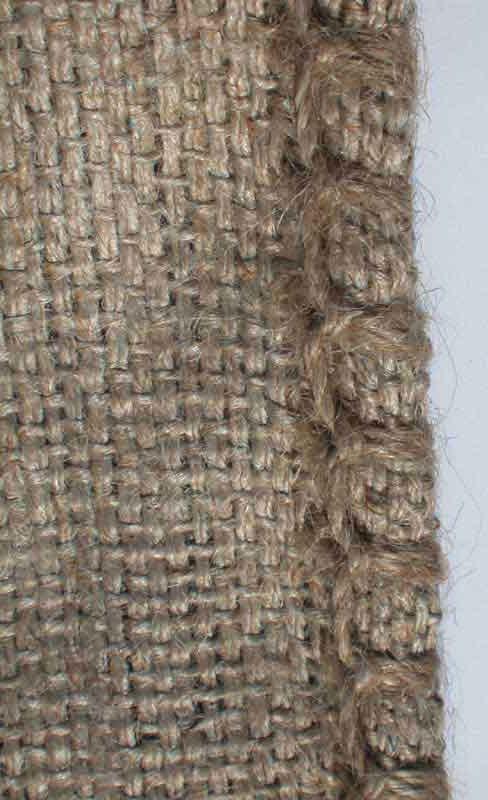

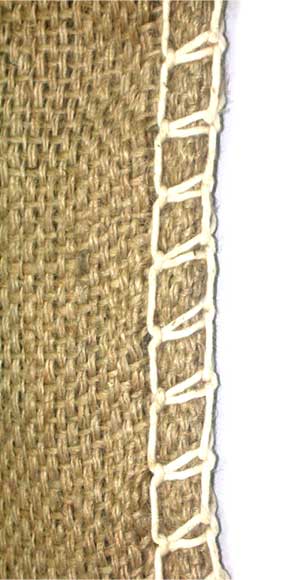

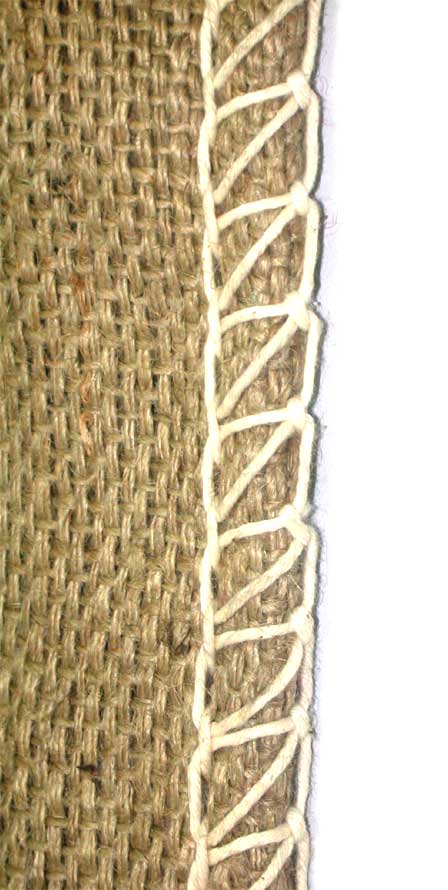

Revo® R-20 Series are plain-feed, flatbed machines suitable for over-edging/ over-seaming medium to heavy weight jute or PP/PE woven cloth bags for manufacturing bulk FIBC bags. The over-seam width can be varied from 10 to 15mm with replacement of some parts. The wide over-seam width of 15mm increases the overall seam strength and is ideal for making jumbo bags. Special Heavy Duty Machine for sewing on thick material. | |
Order Now |
Bag Making Machines.(with stand)

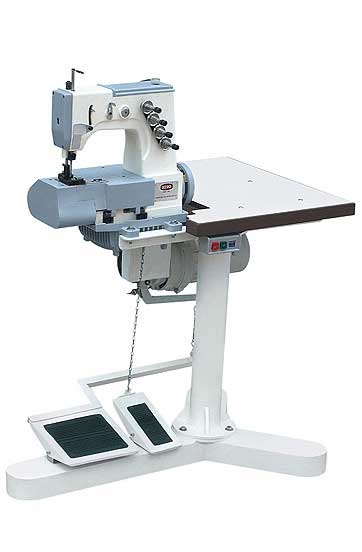

Revo® Table Stand RX-5
Cylinder-bed sewing-machine with cantilever stand for stitching filling and discharging spout on (FIBC) container bags

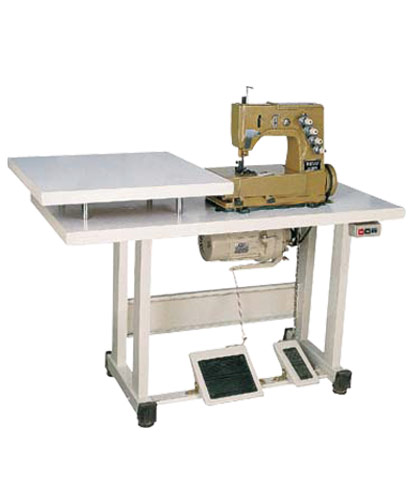

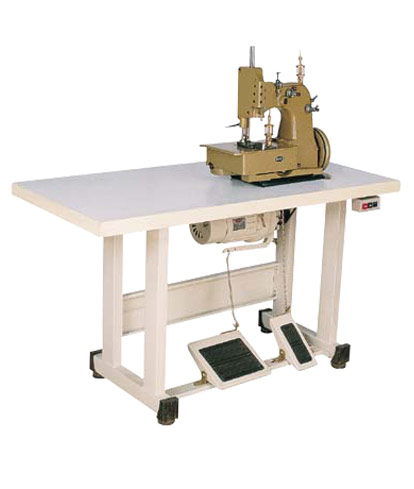

Revo® Table Stand Table Stand-R18
Fine quality table stands available with adjustable height, supplies with pedals and thread stand. Shipped flat packed.
Revo® Table Stand Table Stand
Fine quality table stands available with adjustable height, supplies with pedals and thread stand. Universal applicable to almost all models.

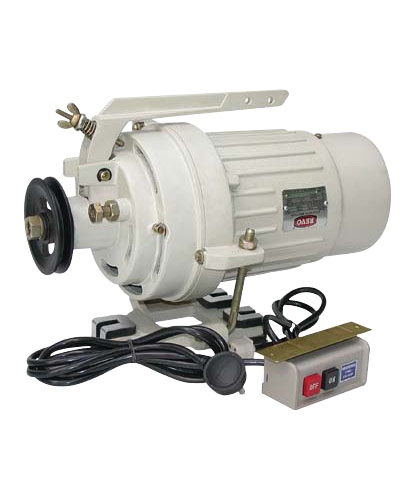

Revo® Integral clutch motor
Kindly Use Contact us form for purchasing or need more information about the above Bag Closing or Making Machines, We will get back to you at the earliest.
